19th Century Ivory Bone & Horn Whistles by James Dixon & Sons , Part I. b.
See Part I and sub parts.

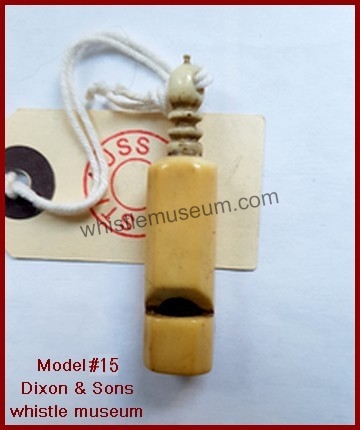

Dixon started turning Ivory & wood whistles while still named Dixon & Son In the early 1820s, and may be earlier, Horn whistles were probably made at the same period but Pressed horn whistles were made later, probably around the late 40s. Model # 15, made in Horn as well, Model #5 (1883 Catalogue).

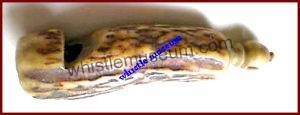

Model #6 Stag Horn, Catalogue mentions #6C ‘Stag Horn 2nd Quality’
and #6CC ‘common quality’
A later stag horn Model #6 variatin.

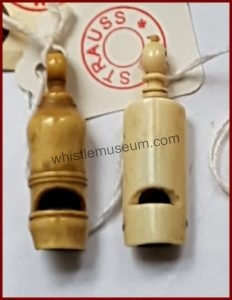

More Ivory whistles, Left; 44mm right; Oval shaped 46mm similar to Model number #47 in N.P Brass
Horn & Stag Horn whistles
An early classic dog call which was later made by many companies, Acme whistles still makes this type.
5 various horn made whistles by Dixon,
2nd and 3rd from left: Dixon Extra Large size with an easily identified shape Fipple & Mouthpiece Made in the 2nd period since 1940s as railway whistle, Mailman etc. It has the tip cut off for a brass bubble top with drilled hole and ring, I had seen many. All are special, hand made and never with same size or color.
Length; 90mm to 100mm. Earlier ones have no brass nails to strengthen the fipple. The PEAS were all different sizes as well , hand made to fit in before the fipple was placed.I Identified this 2006 from the Dixon family collection of 41 whistles in the Sheffield City hall, see photo Part I.
The horn made fipple (sometimes wood) was hand carved and smoothed to fit each whistle.
The same OVAL mouthpiece was used on smaller whistles that had a none metal top where the body and top were made of ONE PIECE,
See group of 5 whistles, 1rst From Left 4 & 5
Left one is 78mm other smaller and other examples not in photo but smallest is 63mm
Here you can see anther feature by which Dixon’s Horn whistle can be identified, the top, kind of like an angled tear drop shape. The mouth piece mentioned looks like a open Fish-mouth to me.
Next is of the highest quality ones with cocoa wood fipple.with mechanical pencil probably a game keeper or sports whistle,
And a Brass Thistle coat of arms emblem.
Here is the back of the whistle above a highly polished wood fipple.
Speaking of Ivory & Horn and mentioning Hill Bros. using Sheffield Mouthpiece,
I thought to bring this advertisement by Hill Bros. Established 1792 , and known
to whistle collectors for only one round whistle a ‘registered design 220935’, November 1893, with Metal Finger Ring, albeit they did made many, some were a combination of umbrella handle whistle or walking cane, see picture, but these are difficult to identify.
Theit registered design uses S.M. &F, Hudson made a similar one with a slightly circular mouthpiece and fipple.

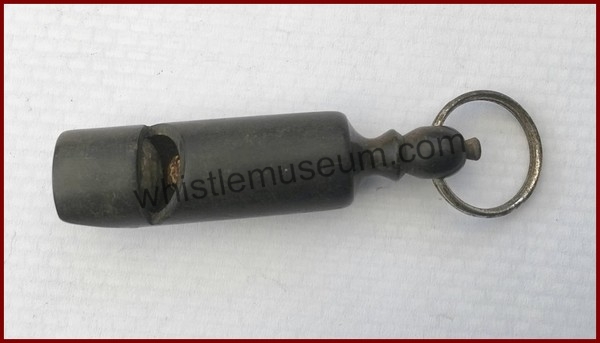

Railway whistle , Probably the most frequently met with Dixon Horn made whistle, This whistle MODEL #5S & 5R was made first in 2 sizes; 62mm, 85mm
and in the 1890s in few more. The common one is 62mm.
These were made in pressed horn, and are all accurate in size
Many of these were used by railway companies as guard whistles and were stamped with the abbreviation of the company ( G.W.R, N.S.R, Etc.. )
Since railwayana collectors really dig these stamp variations, many plain whistles were later stamped.
J.Hudson & Co. made the same model BUT Hudson’s fipple is straight- flush with the whistle’s window, while DIXON’s has a rounded – DOMED END FIPPLE, which was their way of holding the pea in, and keeping it from running out.

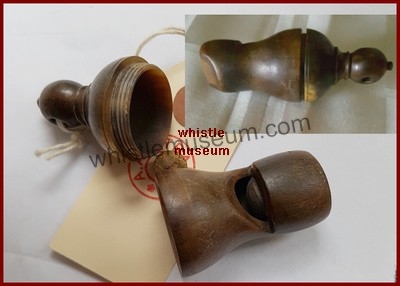

Horn made Round pea whistle with screw top – body, bulbous body.
A beautifully carved master piece, A dog call whistle, The Boar theme and the cocoa wood S.M&F made me think it is probably by Dixon.
Links to other Parts of this article :
2) Early Period Round Whistles and ‘The sheffield Mouthpiece & Fipple’ I. a.,
3) Round Ivory & Horn I.b.
4) Animal Head Whistles, I.c.
5) Round Brass & German Silver Whistles. Signal Whistles and ‘Pig nose’ Whistles
6) Round Britannia Metal Whistles & Model #49. Part I.e.
Part 2, More whistles by Dixon & Sons, including
8) Extractors, combination whistles, Shooting Gudgets and other combination whistles. II. .b
9) James Dixon & Sons Other Rare Whistle Models & Designs. II.c.
Article, Photos and content by Avner Strauss, all rights reserved ,
no part of this webpage is to be used without the explicit permission of the owner. Email : firstname.lastname@example.org
Comments & question are welcom.
